M8 Aviator Connector Custom Keyboard Cable Custom Aviation Cable

Short Description:

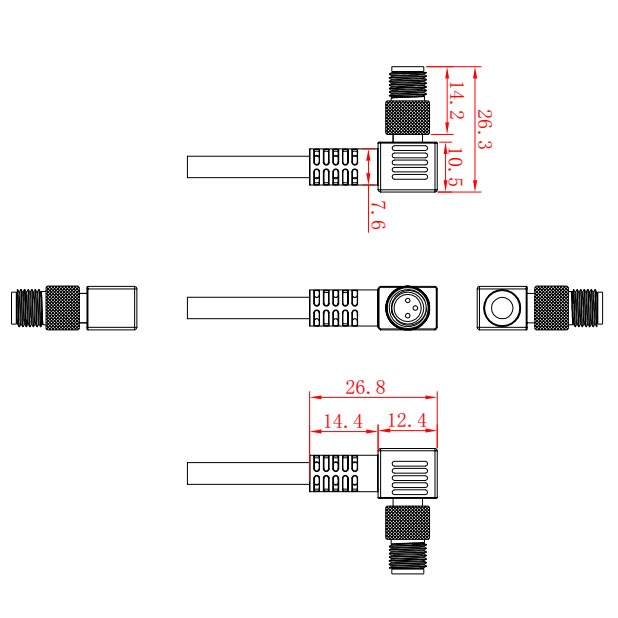

1. Gender: Male & Female terminals2. Size: M83. Function Connecting cables/wires4. Waterproof rate: IP67Pur MaterialWater / Oil / Low Temp–resistanceSafe With Shielded WireMaterial:BrassColor:BlackOrientation:Straight or Right angleTermination:SolderCoupling:Threaded couplingCategory:Pin type or Hole typeUsed:Outdoor light boxes, Construction machinery, Iron and Steel production equipment, Power equipment, Mining machinery, Ship machinery, Auto equipment, Automatic production equipment, Temperature transmitter, Hydraulic machine, Sensors, Electromagnetic valve, Instruments and meters, Pressure transmitter, etc.

Send email to us

Product Detail

Parameter

Gender	Female to male
Pins	16p, 14P, 22P, 26P, 4p, 64P, 5P, 12p, 28P, 30P, 36P, 1P, 7P, 10P, 24P, 32P, 9P, 50P, 3P, 8P, 34P, 40P, 18P, 20P, 2P, 6P
Number of Cores	customized core pin
Model number	M12，m8 , 16
Kind	Wire to wire
working frequency	high frequency
Scope of application	sensor
Interface Type	AC/DC
Shape	Round shape
Line length	222 (mm)
Characteristics	waterproof
Contact material	Brass gold plated
Insulator material	nylon

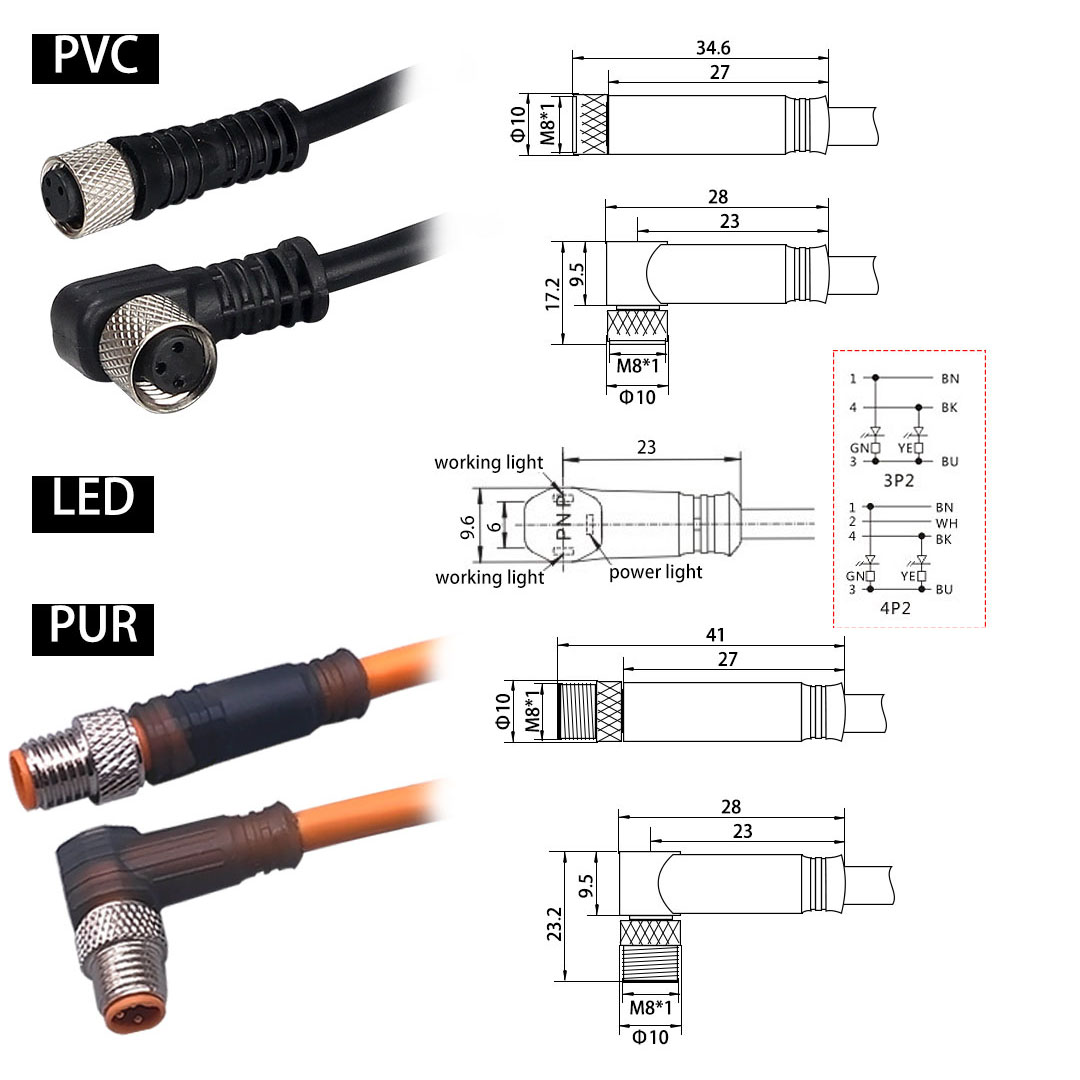

Size	M8*1		M8*1 LED (female)
Contacts	3	4	3	4
Rated voltage	60V	30V	24VDC
Max current	4A

Technical

Insulation resistance		>=10⁸Ω
Ambient temperature		-40°C 〜+150°C
Ingress protection		IP67, IP69
Mechanical life		>150 times of insertion and extraction
Material	Pressure head	TPU (black, brown); PP (white)
	Contact carrier	PA (black, brown); PP (white)
	Seal ring	FPM/FKM
	Contact	Cu-Znalloy, gold plated
	Locking system	Cu-Znalloy, nickelplate, stainless steel

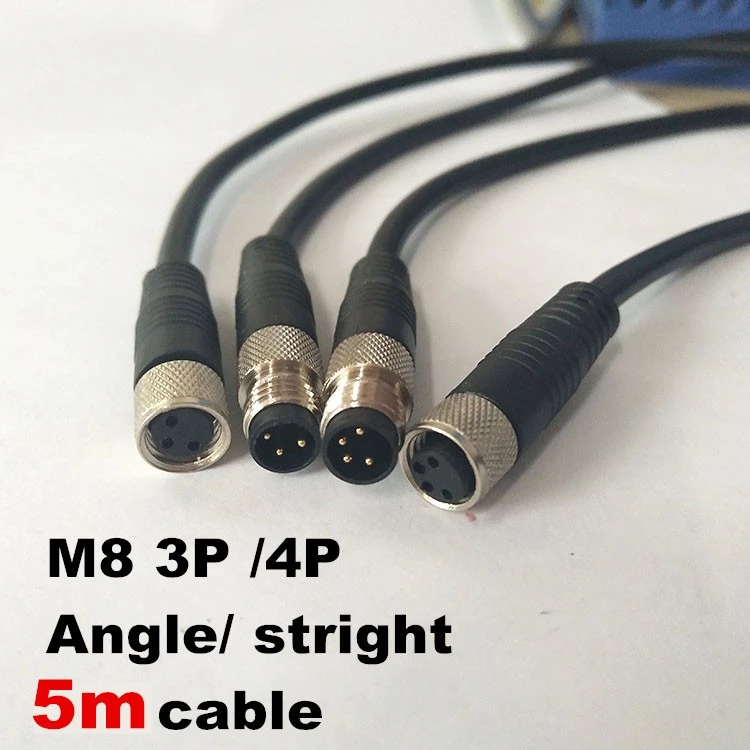

Model Number	M8-3P male and female
Type	DIN
Application	Power
Gender	Male & Female
Pins	3P
Product name	P67 power male M8 3pin connector
Rated Current	2A
Rated Voltage	200V
Mating	500
Termination	Solder
Coupling	Threaded
Temperature range	-55℃ to +85℃
No. of Contacts	2/3/4/5/6/8
Contacts	PA66
Waterproof	IP67
